Adjust the pressure in proportion to the input current. However, this valve should be used with the accompanying power amplifier.

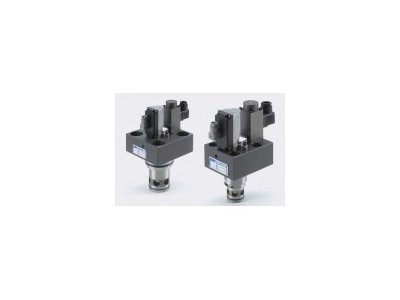

The name is Model EDG-01
High working pressure Bar (psi) 250 (3600)
Heavy Flow litres/minute (gpm) 2 (.53)
Minor Flow litre/min (gpm) 0.3 (0.8)
Pressure adjustment range Bar (psi) Refer to "Model Description"
Rated current mA EDG-01*-B:800
EDG-01*-C:900
EDG-01*-H:950
Coil resistance Ω 10
Hysteresis is less than 2%
Repetition accuracy 1pc
Weight kg(lbs) 2 (4.4)
