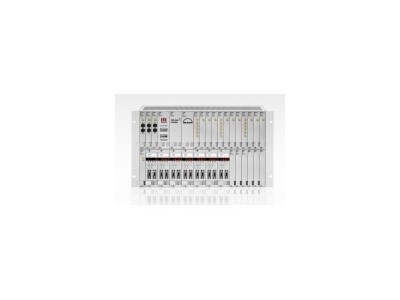

TMR (Triple module redundancy) system with sensor monitoring and self - check function
The protection system consists of three monitor E16681, * test generator E16981 and various additional modules
Achieve maximum security and maximum availability with a unique and true 2oo3 architecture for each trip standard in each monitor
It is maintenance-free over the life of its service due to integrated automated verification testing
Automatic testing of one or two 2oo3 solenoid valve blocks and permanent monitoring of feedback via a test generator
* Low total cost of ownership
The SIL3 safety loop needs to be less than 1% of the allowable PFD value
Integrated test generator improves safety value
Replace all active components during operation (hot swap)
TV security and other * SIL3 / IEC 61508:2010 certification
TV PL e certification; The cat. 3 / DIN EN ISO 13849-1:2008
The TV is SIL CL 3 / IEC 62061:2005 certified
Comply with API670 and API612 standards
Two PROFIBUS interfaces
Additional functions of the E16E368 MAN:
Up to 12 load outputs with 2oo3 technology for E/H converters or valves
30 additional digit inputs for 10 digit trip criteria
15 additional analog inputs for 5 analog trip standards
* Rear blade protection
A counter of startup times and elapsed times
