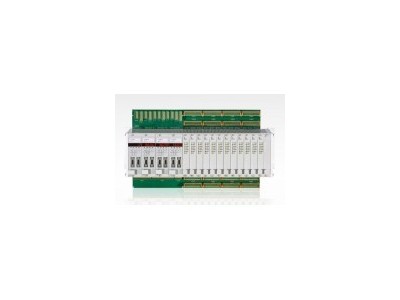

TMR (Triple module redundancy) system with sensor monitoring and self - check function
The protection system consists of three monitor E1668, * test generator E1698 and different additional modules
Achieve maximum security and maximum availability with a unique and true 2oo3 architecture for each trip standard in each monitor
It is maintenance-free over the life of its service due to integrated automated verification testing
Automatically test valve control output by permanently monitoring feedback with a test generator
* Low total cost of ownership
The SIL3 safety loop needs to be less than 1% of the allowable PFD value
Integrated test generator improves safety value
Replace all active components during operation (hot swap)
TuV Safety and other * SIL3 / IEC 61508:2010 certification
TuV PL e certification; The cat. 3 / DIN EN ISO 13849-1:2008
TuV is SIL CL 3 / IEC 62061:2005 certified
Comply with API670 and API612 standards
Two PROFIBUS interfaces
E16A358 Additional Features for Siemens:
Separate 2oo3 Valve control (* Multi-expandable to 96 valves)
Feedback valve control status to PLC/DCS via PROFIBUS
