1 or 2 channels
Remote sensing excitation
5 and 6 points linearized
double
999,999 display counts
Nonlinearity < 0.005%
Automatic setting of multiple weighing sensors
Fast, direct analog output
10 VDC Scalable Analog Output - 16 bits
Full duplex RS232C communication
Provides TEDS read/write options

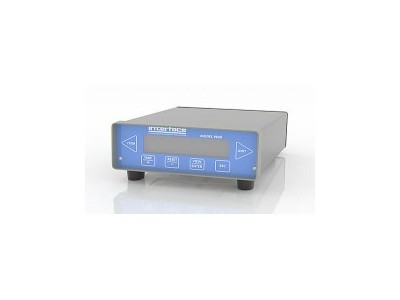

The Type 9840 is suitable for calibration laboratories, field service or anywhere where high accuracy is essential. Features include an intersex 6-bit 2-wire display, remote sensing, low noise, 24-bit internal resolution, USB port with RS232 communication, mV/V calibration, and the ability to store calibrations of up to 25 sensors. 6 point linearization, unit conversion and front panel peeling. The device also has self-calibration via TEDS plug and play, in compliance with IEEE 1451.4 standard.
