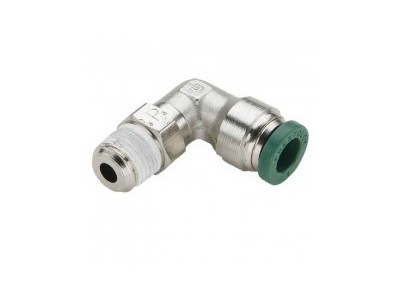

As a manufacturer of quick-plug technology, Pike's Prestolok PLP nickel plated connectors provide an easy way to connect pipes and connectors to form a piping system distribution network. The Prestolok PLP joint eliminates the need for bushing and locking threads as with compression joints, thus reducing installation time. The tube can be simply inserted into the bottom of the joint for connection. To remove, press the release button, hold down the joint body and pull the tube out of the joint. The use of thread sealant can be applied to all external threads, which can eliminate the use of PTFE sealing tape may cause system contamination.
Can be used with the following Parker Parflex Division tubes:
• polyethylene pipe
• Polypropylene tube
• Plastic nylon tubes
• Unplasticized nylon tube
• Shore A 90-95 polyurethane pipe
• Shore A polyurethane pipe with hardness greater than 95
Market:
• Industry
• Car
• Semiconductor
• Packaging
• Robot
• Climate control
• Textile
• Vacuum
Features and advantages:
• Compact piece joints
• All external threads are threaded with loose joints, thus suitable for installation and accurate positioning in compact Spaces.
• Pre-apply white acrylic sealant
• NPT, UNF, BSPT, BSPP and metric threads
• Corrosion resistance
• Quick-plug technology allows quick connection and disassembly
• 1/8"" -1/2 "", 4mm-14mm
Application:
• Air piping
• Inert gas
• Tubing
• Vacuum pipe
Technical specifications:
• Stainless steel clasp
• Nitrile butadiene rubber
• copper-nickel plating body
• Polyacetal release button
