Limiting continuous current Ith max.: 8A
Nominal voltage: DC 6-110 volts
Voltage range UN: 0.7-1.4
Protection: RT II (solder proof wire), optional RT III (washable)
Dimension Length x width x height: 51.5 x 14.5 x 30.5 mm
Test voltage (AC), contact group - coil: ≥ 4 kV efficiency
Relay type: monostable state
Temperature range (- / +) : -40-85 °C
Type according to DIN EN 61810-3: species.
Approved: TUV
Contact materials: AgSnO2, AgNi
Electrical clearance and creepage distance contact group - coil ≥ : 8mm

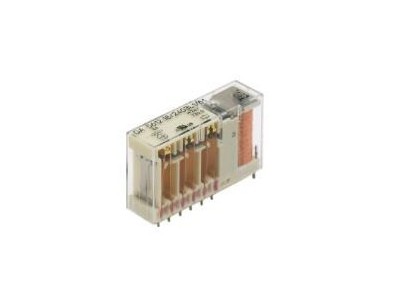

Relay type: OA 5612
