Limiting continuous current Ith max.: 8A
Nominal voltage: DC 6-110 volts
Voltage range UN: 0.85-1.2
Protection: RT II (solder proof wire), optional RT III (washable)
Dimension Length x width x height: 83 x 22 x 15.8mm
Test voltage (AC), contact group - coil: ≥ 4 kV efficiency
Relay type: bistable
Temperature range (- / +) : -40-75 °C
Type according to DIN EN 61810-3: species.
Approved: TUV
Contact material: Silver nickel
Electrical clearance and creepage distance contact group - coil ≥ : 5.5 mm

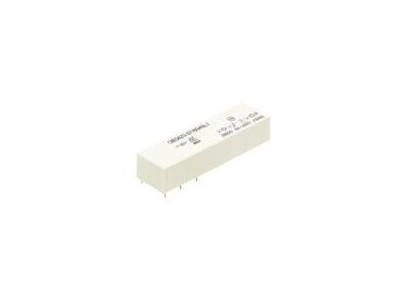

Relay type: OB 5623
