Design improvement
The obverse form is rounded
IP Front-end protection IP66, IP67, and IP69K
Mounting hole Ø 22.3mm
Dimension Ø40 mm
Front baffle color black
Front baffle material plastic
Front dimension ø40mm
Case color Yellow
The building material is plastic
The lenses are red in color
Lens lighting is not lighting
Lens material plastic
Lens optically opaque
Lens shape mushroom head
Switch action hold
The weight is 0.075 kg
Switching element
The maximum. Number of switch components 6
function

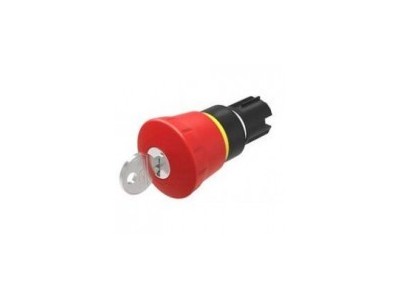

Emergency stop switch
