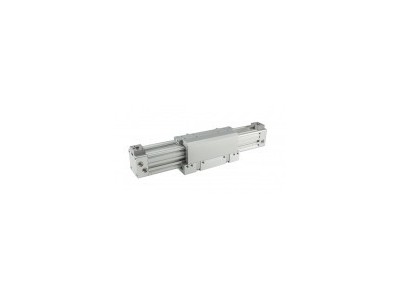

The outside of the guide cylinder can be configured with a guide wheel frame, which is provided by a guide rod in the concave groove of the special-shaped pipe
Because the guide wheel frame in the shaped pipe groove is stable, compared with the standard cylinder, the performance data of the guide cylinder has been greatly improved
ZF and ZFK are standard base models for other diversion cylinders
In the ZFU guide cylinder, the guide wheel holder is installed at the bottom of the special-shaped pipe and connected with the piston rod head through the additional Angle steel
In the ZFF guide cylinder, the guide wheel frame is installed on both sides of the piston rod head
