Product description

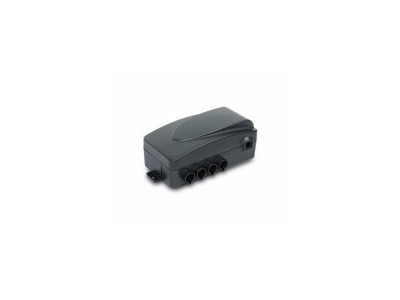

CB3T control box is designed for home bed, nursing bed and other furniture applications. It can drive up to 3 putters, with the option to sync. There are two models of this series, CB3T and CB3T-SY.
Technical data
Input: 120V AC 60Hz / 230V AC 50Hz (EI transformer), 100-240V AC, 50/60Hz (SMPS)
Output voltage: 24V DC (EI transformer), 29V DC (SMPS)
Rated output current: 3.0A for CB3T (individual push rod), 5.0A for CB3T-SY (total)
Number of multi-control putts: 3
Number of sockets connected by hand controller: 1
Working cycle: 10%, and within 20 minutes long continuous operation for 2 minutes
Overcurrent protection function
Shell color: black
Electric shock protection, etc. : Class II
Length of power cable: 3000mm
Passed certification: CE stamp, Electromagnetic Compatibility instruction EMC 2014/30/EU and low voltage instruction LVD 2014/35/EU
option
CB3T (Basic) : No synchronization
CB3T-SY (Synchronous version) : 2 push rods synchronized
