Product description

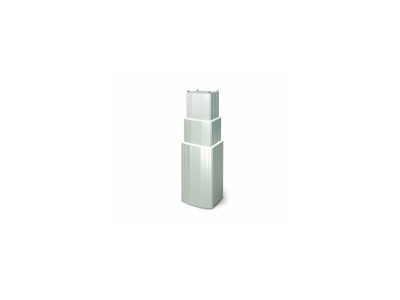

The DLC1 is a quiet, strong and high-load three-section lifting column with a specially designed transmission mechanism for smooth and rapid lifting.
DLC1 is suitable for dental chairs, medical beds, treatment tables, lifting tables or countertops... And other applications, at the same time according to the needs of the use of a single action or two synchronous way.
Technical data
Large input voltage: 24V DC
Large load: 2000N (thrust)
No load speed: 10.9mm/sec (average)
Load speed: 9.8mm/sec (average @2000N load)
Stroke: 50~400mm
Large bending moment: 500Nm (static), 250Nm (dynamic)
Working cycle: 10%, long continuous operation for 1 minute
Noise value: ≦50dB
IPX4 protection, etc
Appearance material and color: aluminum gray, surface treatment aluminum
Power cable length: 1000mm straight line
Built-in limit switch
Operating temperature: 0°C to +45°C
Product certification: CE seal, EN 60601-1-2, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-8
option
Dual Hall sensor position signal feedback option
Power cable length: 2000mm straight
IPX6 protection, etc
