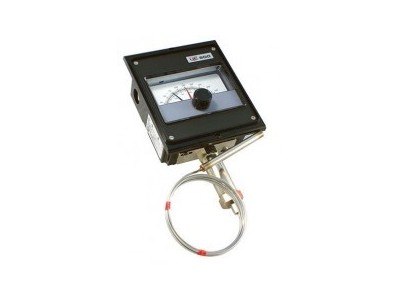

UE Temperature switch 800 series

Brand:	UE
Price:	N/A
Min quantity:
Quantity:
Deliver:	In 3 days
Area:	CHINA
Expiry:	Long-term
Edit time:	2022-12-30 14:50
Hits:	8

Company

Detail

For applications requiring a visual display of process temperatures and Settings, the 800 Series offers a height readable 4-inch setting/indicating ruler. It is available in two models: Lexan housing for Class 1 or Class 4 housing applications (with option M300), Lexan Window and epoxy-coated aluminum housing for Div. 1. Explosion-proof application. For temperature indication only, the T800 thermometer has the same performance and construction characteristics as the 800 series.

The 800 Series model controls and indicates temperatures for food service equipment, ovens, packers, HVAC equipment, and a variety of temperature applications within the processing plant.

No external power supply is required

SPDT or dual switch output

Stainless steel tube and capillary

NEMA 4 shell

Optional capillary length and material

Adjustable range:

-180 to 650 ° F

-117 to 340C

Certification: UL, CSA, CE

Temperature indication and control switch

Single or dual SPDT output

Stainless Steel Bulb & Capillary
