Mini quick change connector DN 5
Quick change connector with ball pin for one hand operation. The stop valve is on the joint and opens automatically when connected. No check valve on plug.
Safe quick change connector DN 7.8
The two step release safety quick-change joint conforms to ISO4414, DIN EN 983. Gently push the casing in, open the track lock, the quick change connector closes and the plug enters two positions, at this time the remaining pressure in the plug is discharged. To open the second lock, you need to push the casing in again so that the plug can be pulled out and disconnected without danger.
If long time use need wear-resistant, recommended to use stainless steel plug.
High flow quick change connector DN 7.8
Quick change connector with needle lock and check valve, one hand operation, high flow rate, strong construction, can be used in large airflow consumption.

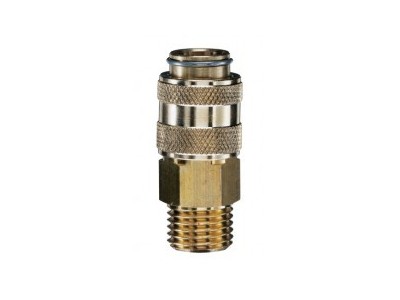

Standard Quick Change Connector DN 7.2 (Brass and Stainless Steel)
Quick action quick change connector with needle lock and check valve for one hand operation. The stop valve on the quick change connector will open automatically when connected. There is no check valve on the plug. It is recommended to use stainless steel quick change joints under severe wear conditions.
Standard Quick Change Connector DN 7.2 (Ball rotary connector)
Free Angle rotation avoids rotation and distortion, increasing efficiency and making installation more flexible. Dust-free operation of the protective rubber sleeve can avoid damage to the interior of the quick change joint.
