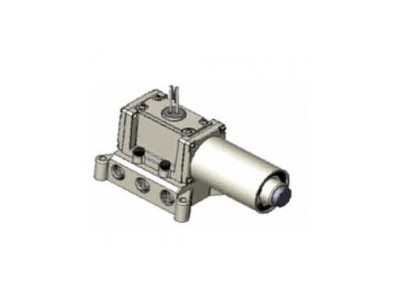

As a large capacity valve, suitable for large actuator.
The metal sealing method is resistant to gas and dust, and can also play an excellent role in adverse conditions.
It is a direct action, can achieve accurate operating performance under adverse conditions.
Item \ Conversion method single/double
Oil port size PT 3/8, PT1/2 (G, NPT 3/8, 1/2)
Fluid compressed air
Working pressure 0~9.0 bar
Instantaneous flow 2400 L/min (5bar)
The effective cross-sectional area (Cv) 43.0 ㎟ (2.4)
Ambient and fluid temperature 5~60℃
Response time (5bar) less than 50ms
Large operating frequency 2 cycles per second
No lubrication required (use ISO VG32# for lubrication)
No manual operation
Rated coil voltage AC220, AC110(50~60Hz)/DC24V
Allow voltage fluctuation ±10% of rated voltage
F corresponds to coil edge type
Apparent power AC 14VA (60Hz)
Power consumption DC 13.2W
