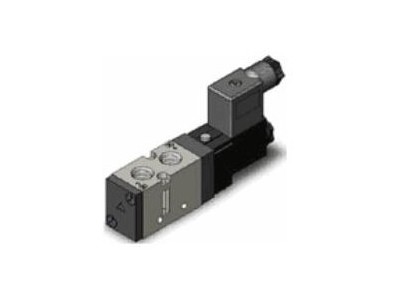

It is lubricated and has excellent durability.
As a large capacity valve, it can be used for Ø30~Ø80 cylinders.
There are a variety of options for the push, lock and coil parts of the manual operation section, with a variety of lead lengths.
Item \ conversion method even closed
Center exhaust
Central pressure
center
Oil port size PT1/4 (G1/4, NPT1/4)
Fluid compressed air
Working pressure 1.5~9.0 bar 2.0~9.0 bar
Instantaneous flow 1000 L/min (5 bar) 760 L/min (5 bar) 800 L/min (5 bar)
Effective area (Cv) 19.0 ㎟ ㎟ 14.0 (1.0) (0.76) 15.0 ㎟ (0.8)
Ambient and fluid temperature 5~60℃
Response time (5bar) Less than 25ms less than 35ms
Large operating frequency 5 cycles/second 3 cycles/second
No lubrication required (use ISO VG32# for lubrication)
Manual operation button (standard), rotating rod (optional)
Rated coil voltage AC220, AC110, AC24(50-60 Hz)/DC24V, DC12V
Allow voltage fluctuation ±10% of rated voltage
F corresponds to coil edge type
Apparent power AC 4.5VA (60Hz)
Power consumption DC 2.5W
