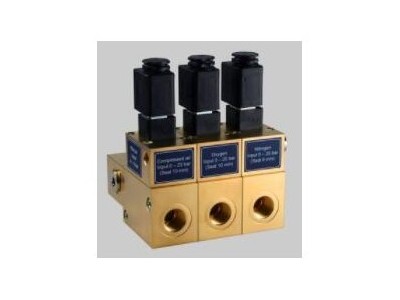

Pneumatic pilot switch valve block for nitrogen, oxygen and air
Inlet pressure:
Large 40 bar (nitrogen, air) (8mm seat)
Large 20 bar (nitrogen, air) (10mm seat)
Da 20 bar (oxygen)
Guiding pressure: 4 to
Connection: Input and output G3/8, guide control
Flow: 1390 Nl/min (8mm seat) or 1760 Nl/min (10mm seat)
Made of brass and stainless steel
Sealing parts: nitrile rubber, fluorine rubber
