Apply to all gaseous and liquid media that do not clog pressure systems or corrode copper alloy components
Precision measurement in the laboratory
High accuracy pressure measurement
Testing of industrial pressure gauges
Test the functional characteristics of the instrument
Knife pointer for accurate reading
Zinc white copper wear-resistant parts, can achieve precision movement
Measuring range: up to 0... 60 MPa

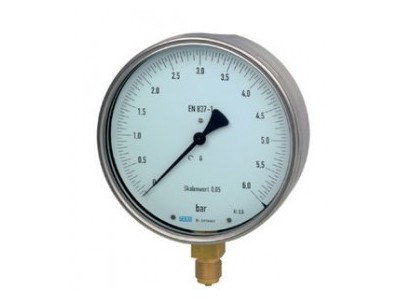

Description of the test instrument
Design of test instrument
In accordance with EN 837-1
Standard size (mm)
160
Accuracy etc
0.6
range
0... 0.06 to 0... 60 MPa
Or all other equivalent negative pressure ranges or combined positive and negative pressure ranges
Adjusting medium
≤ 2.5 MPa: gas
> 2.5MPa: liquid
Pressure limit
Stability: full scale value
Volatility: 0.9x full scale value
Overvoltage protection: 1.3x full scale value
Allowable temperature
Ambient temperature: -40... + 60 ℃
Medium temperature: +80℃
Temperature effect
When the temperature of the measuring system fluctuates around the reference temperature (+20℃), the big change is ± 0.4% / 10K of the range
Protection etc
IP 54, in accordance with EN 60529 / lEC 529
