Suitable for harsh working conditions with pulse or vibration
Apply to all gaseous and liquid media that do not clog pressure systems or corrode copper alloy components
Hydraulic device
Compressors and Marine manufacturing
Functional characteristics of shockproof pressure gauges
Anti-vibration, anti-impact
Strong shell
Type certification in shipbuilding industry
Range: 0... 100 MPa
Description of shockproof pressure gauges

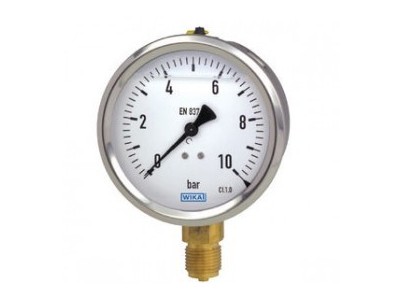

The pressure housing of Model 213.53 liquid filled Bourdon tube is made of stainless steel, and the liquid part is made of copper alloy.
213.53 Liquid filled pressure gauges meet the requirements of international industry standard EN 837-1 for Bourdon tube pressure gauges.
The pressure element and motion are effectively buffered due to the liquid filling inside the table. As a result, these meters are particularly suitable for measurement at high dynamic load points, such as frequent pressure fluctuations or vibrations.
Gauge cases with liquid filling are available in standard sizes of 50, 63 and 100 mm, with IP65 protection etc. The accuracy of the pressure gauge can reach 1.0, which can be widely used in industry.
When mounted on the control panel, pressure gauges with axial mounting connections may be provided with a mounting edge or triangular flange and a mounting bracket.
