Type description

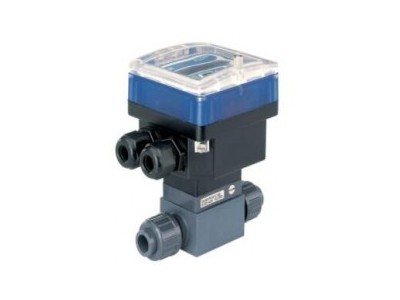

The Model 8035 flowmeter or batch controller is especially suitable for neutral, weakly corrosive, solid-free liquids. The flowmeter or batch controller consists of a compact sensor (S030) with a turbine and a transmitter (SE35), which are easily and simply connected through bayonet joints. Burkert designed the assembly system to make installation of all DN06-DN65 fitting easy. Flowmeters with turbine sensors come in two versions: standard signal output - or battery-powered display version/accumulator version without output.
Measuring tube sizes DN06 - DN65, up to PN16
Flow and volume are shown by two accumulators or gauges
Automatic calibration is realized by Teach-In function
The input (batch controller) and all outputs can be checked without the actual flow
Total and daily counters used to calculate quantities and times (using metering equipment) displayed by metering, volume, or mass counters
