Plug, with 7-pin cable terminal cross section 0.14-1.5 mm2
Pressure connection _P+ : positive pressure
Pressure connection _P- : vacuum
Pressure connection _P+/P- : Differential pressure
, connect higher pressure to P+;
Stopper pacifier up to 1 bar, nozzle with locking nut from 2 bar.
For each hose bore? 4 mm.

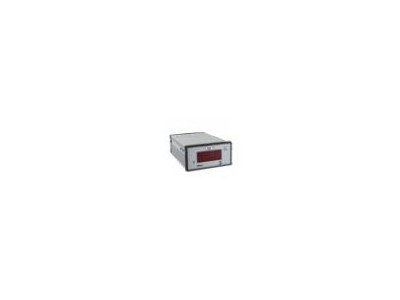

Display: 3 1/2 bit LCD display, Max ± 1999,
14mm high red figures,
Red LED lights up when overloaded. Then the measurement is not correct.
Output signal:
0-10 V, load > 10 kΩ,
Optional: 4-20 mA, load < 500 Ω
Linearity: See table, optional 0.2% FS
Hysteresis: < 0.1% FS
