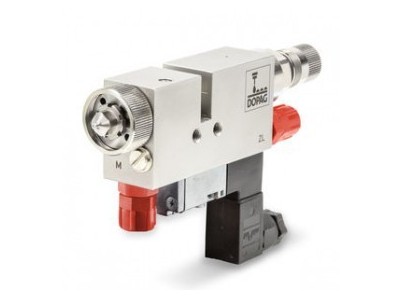

Spray valve is a special type of valve designed for the full surface spraying of grease and grease. It is suitable for intermittent and continuous material applications. A unique feature of the valve is an integrated film that adjusts the air blow duration after each material is shot -- this helps clean the nozzle. Short air path in body and flanged 5/2 way solenoid valves allow very fast and accurate intermittent operation. A wide range of available extensions and accessories provide spraying possibilities for hard-to-access areas, while a variety of cylinders allow custom spraying modes.
Product characteristics
- Spray application
- Nozzle size Ø 0.2-1.5 mm
- Material input pressure maximum 35 bar
- With 24 V solenoid valve (SPV-01)/Compact construction no solenoid valve (SPV-02)
option
- Stroke detection with cable
- Various nozzles extend with different spray cones and angles
-24 V / 50 W Heating Temperature Sensor PT100
- Pressure sensor
