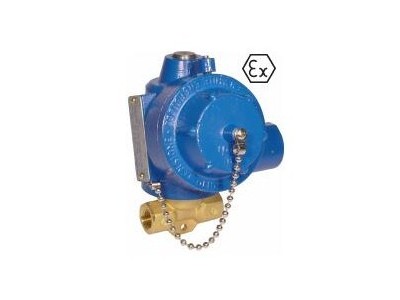

NADI two-way direct acting solenoid valve L03 series


Brand: NADI
Price: N/A
Min quantity:
Quantity:
Deliver: In 3 days
Area: CHINA
Expiry: Long-term
Edit time: 2023-02-15 14:35
Hits: 4

Company






Detail
 Cable inlet Thread: 1/2 "Gk UNI-6125 (standard)
1/2 "NPT, ISO M20x1.5 (available upon request)
Protection, etc. : IP-67
Ex protection: EX-D II 1G/2GDc (IIB o IIC)
Temperature, etc. : T6 or T5 (t.a mb-20 ÷ +40 °C)
Provide T5 or T4 (t.a mb-20 ÷ +60 °C) upon request.
Provide T5 or T4 (t.a mb-60 ÷ +60 °C) upon request. (1)
Coil edge, etc. : F (155°C) -H (180°C) as required.
Winding wire, etc. : H (180°C).
Load: Continuous (S.I.) 100% ED
Power consumption (2) : AC 11VA (surge 28VA).
Direct current 11W.
Tolleranza Tension: ± 10% (standard) Others available on request
Voltage tolerance: ±10%
Margin: >1000 Mohm
Dielectric strength: >2000 V/1 '
Standard voltages are 12, 24, 48, 110, 115, 125, 220, 240 volts
DC=(4) o AC to (50/60Hz) : Other voltages can be provided as required.
