Key advantages:
Can be connected to 1 cylinder and 1 purge operating air source

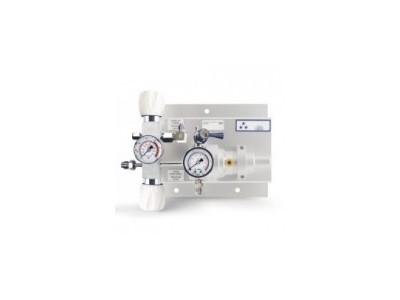

Available for installation to increase productivity: All components are pre-installed on the mounting plate
The CM 104 UC can be connected to the alarm box using contact pressure gauges
Gas type Specialty, Industrial
Weight 4.5 grams
Body material Stainless Steel
Helium leakage rate at high pressure 1 x 10-9 mbar l/sec (He)
Exit connection 1/4
Entry connection 1/4
Upper operating temperature 60 Celsius 140 Fahrenheit
Operating temperature limit -20 Celsius -4 Fahrenheit
Technology Diaphragm Single Stage
Nominal flow 25 Nm3/h (N2)
Outlet pressure 15 bar 217.5 PSI
Inlet pressure 200 bar 2900 PSI
Purity level 6.0
Oxygen application is not available
