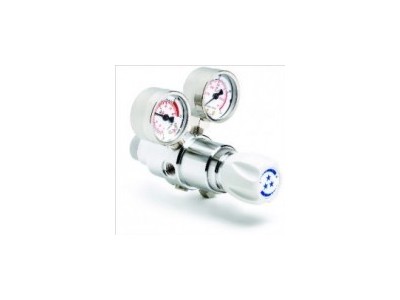

Using non-bonded diaphragm technology and spherical hand wheel, sensitive and accurate control can be achieved in small space
Complete traceability, dust-free workshop assembly, testing and packaging
Nano electrolytic polishing ensures better corrosion resistance
Excellent response at low pressure
Flow volume, easy to purge
specification
Gas types High Purity, Ultra High Purity
Body material Stainless Steel 316L, VAR
Helium leakage rate at high pressure 1 * 10-9 mbar l/sec (He)
Exit connection me-tal-to-me-tal Face Seal 1/4
Entry connection me-tal-to-me-tal Face Seal 1/4
Upper operating temperature 65 Celsius149 Fahrenheit
Operating temperature limit -20 Celsius-4 Fahrenheit
Technology is Non-tied Diaphragm Single Stage
CV0, 2
Outlet pressure 2, 4, 7, 10 bar29 PSI
Inlet pressure 50 bar725 PSI
Purity level 9
Weight 0.7 grams
