application
Monitoring of OEM transmitters, incubators and industrial processes in environmental test chambers.
characteristic
At 23 °C ±5 °C: Accuracy ± 1.0% rh / ±0.2 °C
Probe application range: Depending on the probe -100 ~ 200 °C
PCB temperature range: -40... 85 °C
Available with a variety of types of probes
The analog output signal range is adjustable
Simulator mode
Direct 4-wire Pt100 Connection (optional)
Power supply
Low voltage supply 3/4 wire system (XB3x)
Low voltage power supply 2 wire system (XB20)
Signal output
Current output
Voltage output
version

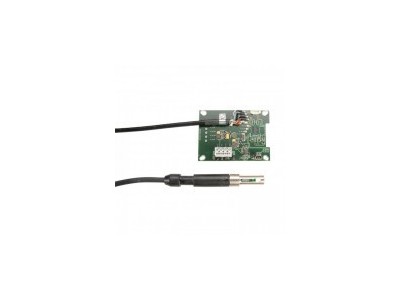

Printed circuit board with cable probe
probe
PPS and stainless steel probe
Probe diameter: 15 mm or 25/15 mm
The probe length is 700 mm
The cable is 2 meters to 5 meters long
Output parameter
Humidity & temperature Dew point/frost point and temperature and humidity
